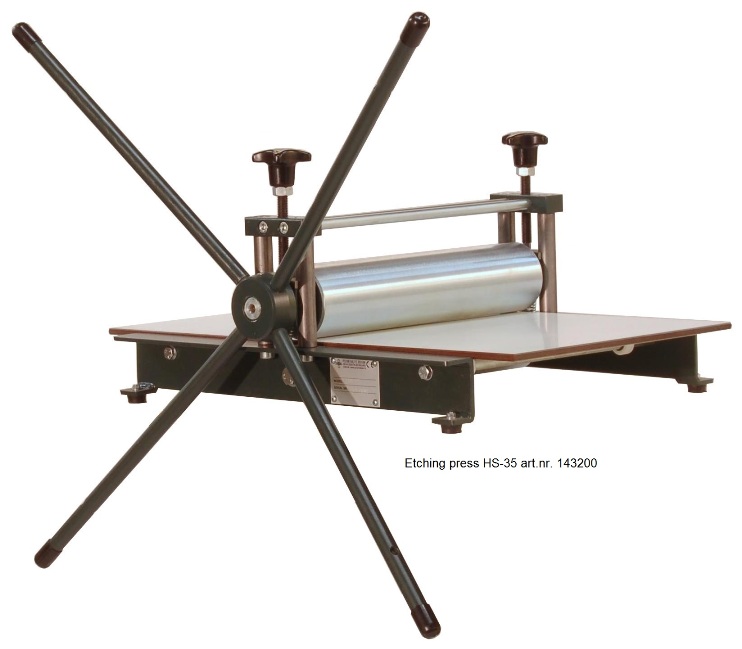

Etching press HS-35

Polymetaal
Normally in stock, otherwise approximately 2 weeks delivery time
143200
Weight in g or kg: ..

Technical data

Bed size

35x60cm

14"x24"

Diameter of lower roller

5,6 cm

2.2"

Bed thickness

0,8 cm

0.3"

Wall thickness of lower roller

1 cm

0.4"

Measurements of the press:

Star wheel diameter

82 cm

32"

- Length

50 cm

20"

Max. clearance between bed and upper roller

4 cm

1.6"

- Width

45 cm

18"

Screw thread of spindles (metric)

M 12

- Height

30 cm

14"

Dimensions of cardboard container

31x46x61cm

12"x18"x24"

Length of roller

35 cm

14"

Weight of press

36 kg

79 lbs

Diameter of upper roller

8 cm
(solid)

3.1"

Dimensions/weight when packed on a pallet

80x60x47 cm, 45 kg

24"x31"x19"100lbs

If the press will not be sent with a parcel carrier and if the press is to be sent on a pallet via road freight in Europe, click on the pallet right. The "pallet page" will open and adds this pallet (60x80x47cm) to your basket.


Pallet wrapped in cardboard and plastic. Delivery door to door.

If the press will not be sent with a parcel carrier and if the press is to be sent world wide in a crate via sea freight, click on the crate right. The "crate page" will open and adds this crate (60x80x47cm) to your basket.


Wooden crate. Delivery until port of destination. CFR. Excluding fumigation cost, if applicable

Transport:

  • Pick up in Leiden Netherlands is possible.
  • Sometimes it is possible that we bring the press ourselves (combination of deliveries)
  • The parcel carrier DPD can carry the press in two parcels, given the maximum package weight of 31 kg that they employ.
  • The parcel carrier UPS can carry the press as one parcel
  • Delivery with Road Freight (DSV). (Europe door to door).If applicable, please add a pallet to your shopping basket. This allows the system to calculate estimated shipping costs during check out.
  • Delivery with Sea Freight (outside Europe, until port of destination). If applicable, please add a crate to your shopping basket. This allows the system to calculate estimated shipping costs during check out.
