Polymetaal
on request
151600
重 量: kg

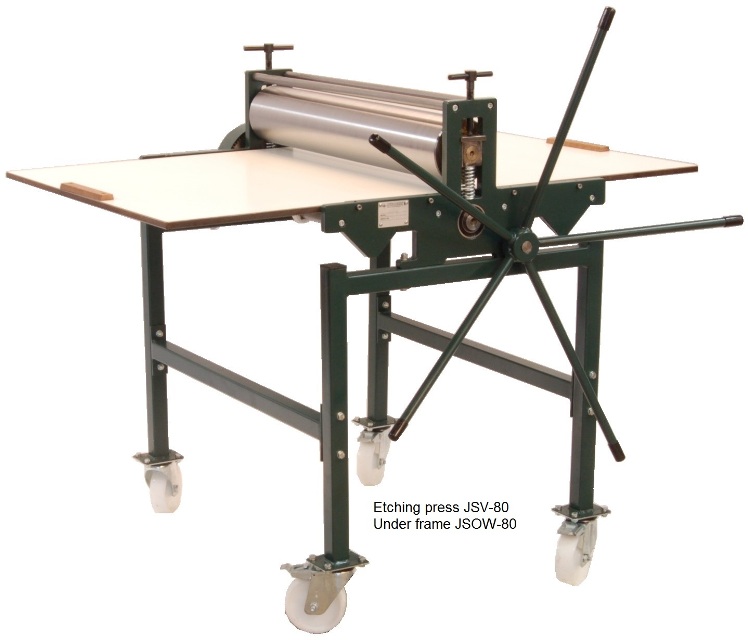

Etching press JSV-80, bed size 80 x 130 cm, 31.5" x 51", with gear system

Technical data, etching press JSV-80

Bed size

80x130 cm

31"x51"

Diameter of upper roller

13,5 cm

5.3"

Bed thickness

1 - 1,5 cm

0.4- 0.6"

Wall thickness of upper roller

1,7 cm

0.7"

Press dimensions

Diameter of lower solid roller

9 cm

3.5"

- Length (of side frames)

79 cm

31"

Diameter of spoke wheel

104 cm

41"

- Width (incl. spoke wheel)

100 cm

39"

Thickness of solid steel side frames

2 cm

0.8"

- Height

44 cm

17"

Max. clearance between bed and upper roller

4 cm

1.6"

Length of rollers

80 cm

31"

Pressure spindles screw thread (metric)

M 16

Weight of the press

130 kg

286 lbs

Dimensions of underframe (optional)

HxWxL
77x88x67cm
30"x35"x26"

Work height, without underframe

22 cm

9"

Work height with underframe

89 cm

35"

Gearing ratio

1:5,3

If the press must be shipped (without under frame)on a pallet by road freight in Europe, click on the pallet to the right. The pallet page will open and add this pallet (100x120x70 cm) to your shopping basket


Pallet wrapped in cardboard and plastic foil. Delivery door to door.

Weight of the pallet 80x120x50cm

180 kg , 396 lbs

If the press must be shipped (without under frame) in a crate by sea freight world wide, click on the crate to the right. The crate page will open and add this crate (100x120x70 cm) to your shopping basket


Wooden crate. Delivery until port of destination. CFR. Fumigation cost excl. if applicable

Weight of the crate

200 kg, 440 lbs

If the press must be shipped (with under frame)on a pallet by road freight in Europe, click on the pallet to the right. The pallet page will open and add this pallet (80x120x95 cm) to your shopping basket


Pallet wrapped in cardboard and plastic foil. Delivery door to door.

Weight of the pallet

220 kg, 484 lbs

If the press must be shipped (with under frame) in a crate by sea freight world wide, click on the crate to the right. The crate page will open and add this crate (80x120x95 cm) to your shopping basket


Wooden crate. Delivery until port of destination. CFR. Fumigation cost excl. if applicable

Weight of the crate

255 kg, 560 lbs

The press can come with two different underframes; without casters and including casters.
On the top of this page, at "options" you can select an underframe if needed.
The complete description of the press (link here below) gives more information about the underframes.

Transport options:

  • You can come to Leiden, Holland to collect the press.
  • Sometimes it is possible that we bring the press, if it happens to be on a delivery route.
  • Delivery by roadfreight (DSV) in Europe. In order to calculate an estimation of the total costs, you should here above add an appropriate pallet.
  • Delivery by seafreight (outside Europe) to a port in the country of destination. In order to calculate an estimation of the total costs, you should add here above an appropriate crate.
